Name: QC022 C - QuickChange built-in module with centering function
Brand: InClaTec

QuickChange ∨ QuickChange Modules > Clamping Nipples > Clamping Station > Clamping Pallet > Accessories Collet Chucks Vacuum

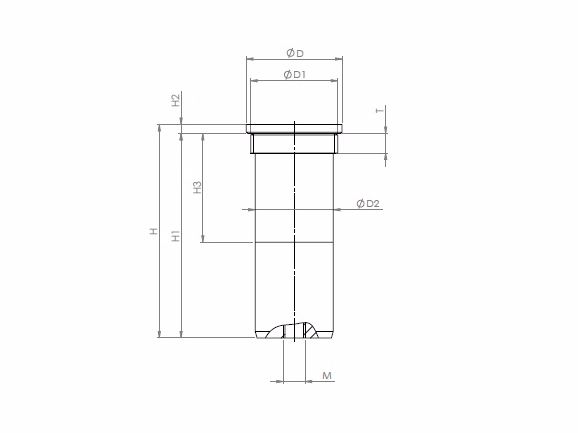

Manual Installation drawing

QC022 C

QuickChange built-in module with centering function

Built-in diameter: ø22 mm
Length: 49,05 mm
Clamping force: 235 until 575 N
Pneumatic opening pressure: 6 to 14 bar

The QuickChange module can be used with the clamping nipple (QS022) for various applications such as mold parts, stamping parts, tools, workpieces, jigs, measuring instruments. It saves changeover times by changing quickly and accurately. The module can be mounted using assembly key (QC022-AK).

Application
The QuickChange module can mounted in different ways (see installation drawing). The clamping module has a pneumatic opening and will remain open as long as air pressure remains in the system. When the air pressure is removed, the system will be mechanically closed and locked by a spring force.

Type no.	Order no.	Clamping Force [N]	Holding Force [N]	Torque [Nm]	Operating Pressure [bar]	Repeatability [mm]	Max. Temperature [°C]	Weight [g]
QC02206 C	0001.0230	235	6000	10	6	<0,02	120	61	CAD
QC02208 C	0001.0231	375	6000	10	8	<0,02	120	61	CAD
QC02214 C	0001.0232	575	6000	10	14	<0,02	120	61	CAD

Type no.	Order no.	øD	øD1	øD2	M	H	H1	H2	H3	T
QC02206 C	0001.0230	22	M20x1.5	18	M5	49,05	47	2,05	25	4,5
QC02208 C	0001.0231	22	M20x1.5	18	M5	49,05	47	2,05	25	4,5
QC02214 C	0001.0232	22	M20x1.5	18	M5	49,05	47	2,05	25	4,5
