Clamping Nipples
QS022-EC
QuickChange clamping nipple with centering function
External thread M3 until M6
The centering QuickChange clamping nipple (QS022-C) can be used when a workpiece must be positioned accurately. This can be combined with a aligning clamping nipple (QS022-A) in order to precisely position the workpiece in all dimensions. The other clamping nipples can be floating (QS022-F).

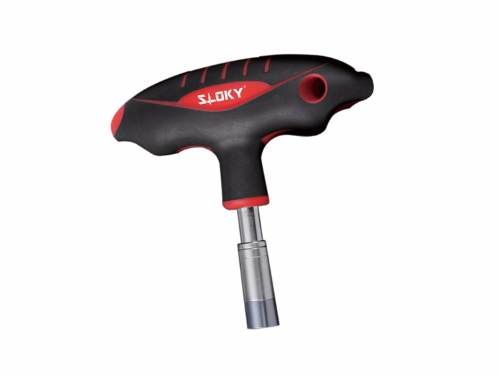

The clamping nipple can be mounted using a torque wrench (QS022-TW) with the correct torque.

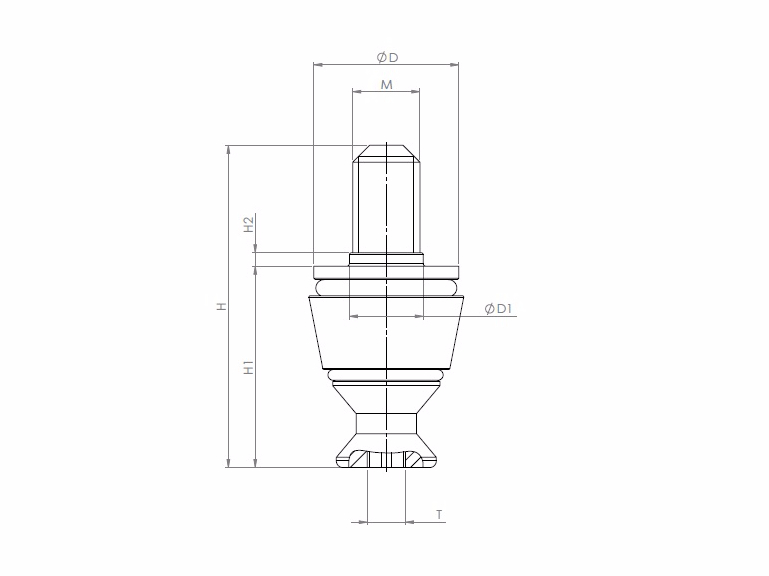

| Type no. | Order no. | øD | øD1 | M | H | H1 | H2 | T | Function | Torque [Nm] | Weight [g] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QS022-EC-M3 | 0008.0233 | 10,8 | 3,5 | M3 | 22 | 15 | 1 | T20 | Centering | 1 | 6,5 | CAD |
| QS022-EC-M4 | 0008.0234 | 10,8 | 4,5 | M4 | 24 | 15 | 1 | T20 | Centering | 2,2 | 7 | CAD |
| QS022-EC-M5 | 0008.0235 | 10,8 | 5,5 | M5 | 24 | 15 | 1 | T20 | Centering | 5 | 7,5 | CAD |
| QS022-EC-M6 | 0008.0236 | 10,8 | 6,5 | M6 | 28 | 15 | 1 | T20 | Centering | 5 | 8 | CAD |
