Clamping Pallet
4V-QP022
Clamping pallet with a flat clamping surface
For 4 pieces QuickChange clamping nipples (QS022-E)
Clamping pallet with a flat surface where 4 pieces QuickChange clamping nipples (QS022-E) can be mounted in. The clamping pallet can be used on a clamping station (4V-QC022) for quick changing and clamping of a product. The clamping pallets (4V-QP022-S-100-M6 and QP022-4V-S-125-M6) are provided with a pattern of holes where a product can be mounted on.
The clamping pallets without a hole pattern can be provided with mounting holes to your own liking. On request we can produce the clamping pallets with mounting holes to your specifications.
Clamping pallets will be delivered without the QuickChange clamping nipples.

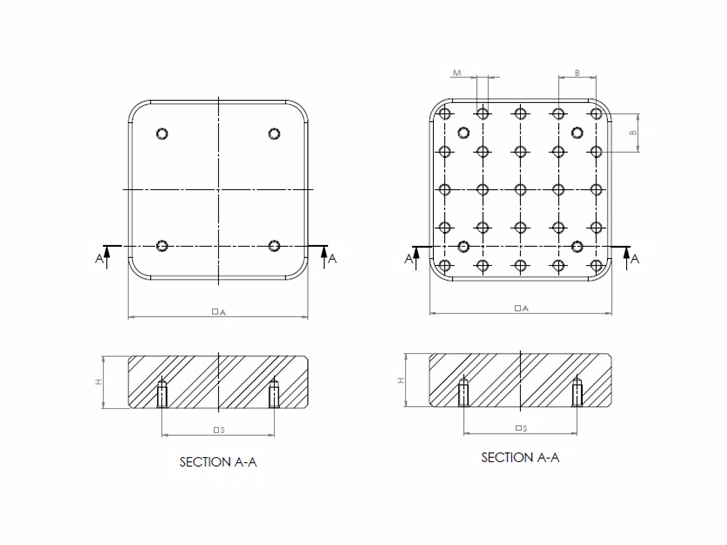

| Type no. | Order no. | A | H | S | B | M | Material | Weight [g] | |
|---|---|---|---|---|---|---|---|---|---|
| 4V-QP022-A-100 | 0011.0421 | 96 | 28 | 60 | Does not apply | Does not apply | Aluminum | 710 | CAD |
| 4V-QP022-A-125 | 0011.0422 | 121 | 28 | 60 | Does not apply | Does not apply | Aluminum | 1140 | CAD |
| 4V-QP022-S-100 | 0011.0431 | 96 | 28 | 60 | Does not apply | Does not apply | Steel | 1950 | CAD |
| 4V-QP022-S-100-M6 | 0011.0481 | 96 | 28 | 60 | 20 | M6 | Steel | 1890 | CAD |
| 4V-QP022-S-125 | 0011.0432 | 121 | 28 | 60 | Does not apply | Does not apply | Steel | 3110 | CAD |
| 4V-QP022-S-125-M6 | 0011.0482 | 121 | 28 | 60 | 25 | M6 | Steel | 3050 | CAD |
