Clamping Nipples
QS022-EAA
QuickChange clamping nipple with aligning function (rotatable)
External thread M3 until M6
The aligning QuickChange clamping nipple (QS022-A) can be used in combination with a centering clamping nipple (QS022-C) when a workpiece must be positioned accurately, in order to precisely position the workpiece in all dimensions. The other clamping nipples can be floating (QS022-F).

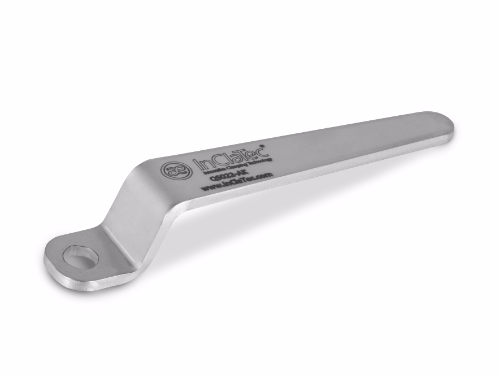

The clamping nipple can be mounted using a torque wrench (QS022-TW) with the correct torque. The aligning function of the EAA and the IAA version are turnable in any postion after installation with assembly key (QS022-AK).

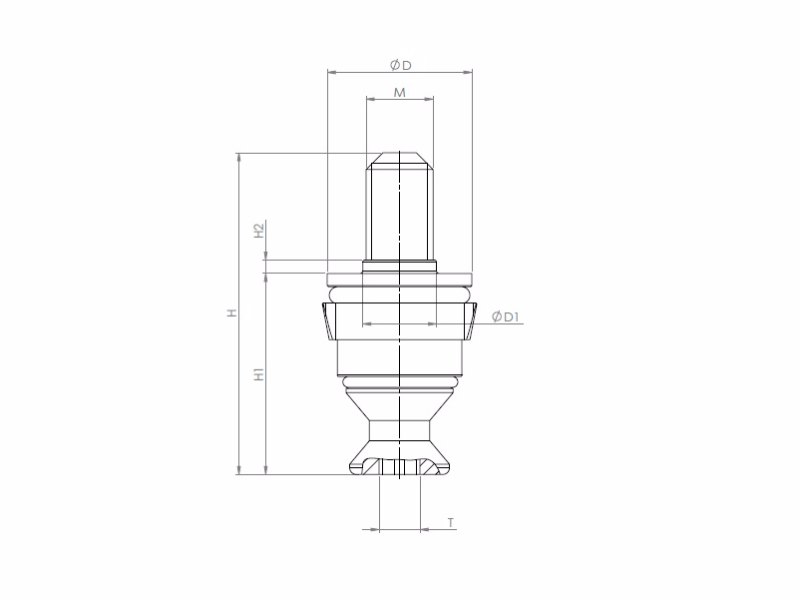

| Type no. | Order no. | øD | øD1 | M | H | H1 | H2 | T | Function | Torque [Nm] | Weight [g] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QS022-EAA-M3 | 0008.0283 | 10,8 | 3,5 | M3 | 22 | 15 | 1 | T20 | Aligning | 1 | 6,5 | CAD |
| QS022-EAA-M4 | 0008.0284 | 10,8 | 4,5 | M4 | 24 | 15 | 1 | T20 | Aligning | 2,2 | 7 | CAD |
| QS022-EAA-M5 | 0008.0285 | 10,8 | 5,5 | M5 | 24 | 15 | 1 | T20 | Aligning | 5 | 7,5 | CAD |
| QS022-EAA-M6 | 0008.0286 | 10,8 | 6,5 | M6 | 28 | 15 | 1 | T20 | Aligning | 5 | 8 | CAD |
