Clamping Station
4V-QC022
Pneumatic Clamping Station
For 4 pieces QuickChange modules (QC022S)
LxWxH : 96x96x100 mm
Pneumatic clamping station where 4 pieces QuickChange modules (QC022S) can be mounted in. At this clamping station you can use several clamping pallets (4V-QP022) for quick changing and clamping of a product.
Threaded hole (G) is provided for the benefit of an air gun valve (QC90000 or QC90001) for rapid opening and closing of the QuickChange modules with the aid of an air gun. There are made 2 clamping grooves for clamping the clamping station on a machine table with the aid of clamps (QC022-SK).
Clamping station will be delivered without QuickChange modules and air gun valve.

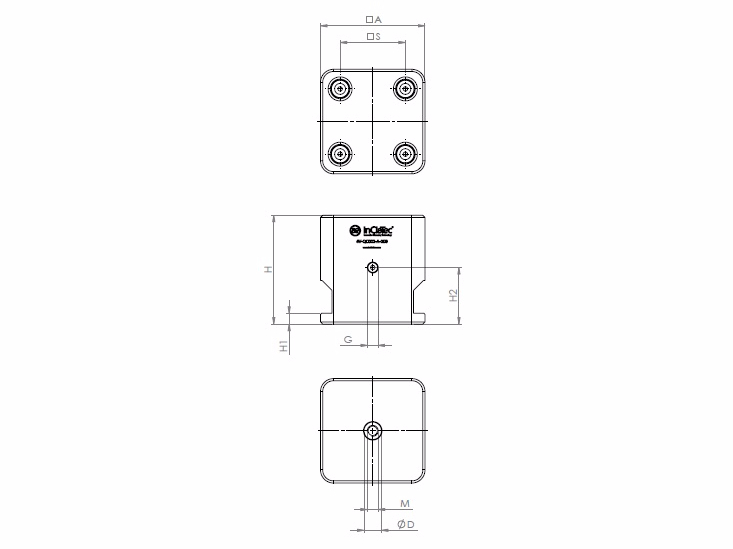

| Type no. | Order no. | A | øD H7 | H | H1 | H2 | M | G | S | Material | Weight [g] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4V-QC022-A-100 | 0011.0401 | 96 | 16 | 100 | 10 | 52 | M10 | G1/8 | 60 | Aluminum | 2200 | CAD |
| 4V-QC022-S-100 | 0011.0402 | 96 | 16 | 100 | 10 | 52 | M10 | G1/8 | 60 | Steel | 6300 | CAD |
QC022S
QC022S C
4V-QP022

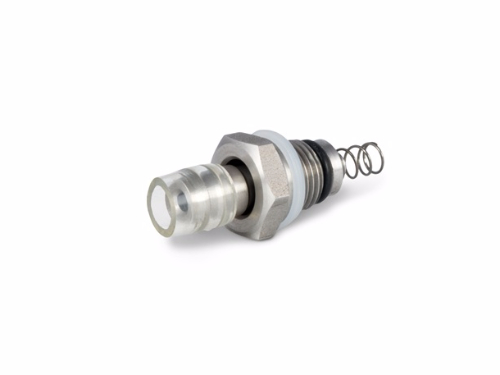

QC90000

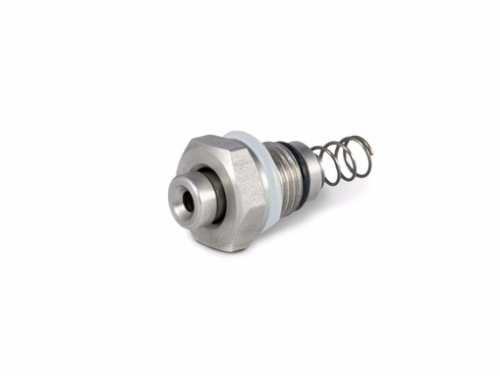

QC90001
QC022-AK

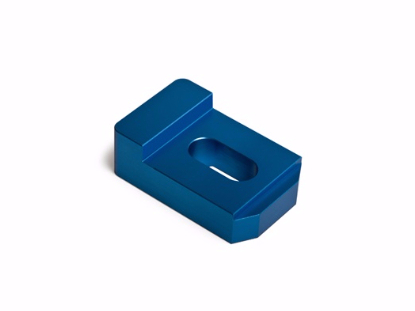

QC022-SK
