Clamping Nipples
QS022-IF
QuickChange clamping nipple with floating function
Internal thread M3 until M6
The floating QuickChange clamping nipple (QS022-F) has no centering function. This clamping nipple can be used when a workpiece does not need a accurate position. When you need a accurate position there will have to be chosen for a centering clamping nipple (QS022-C), optionally in combination with a aligning clamping nipple (QS022-A).
The clamping nipple can be mounted using a torque wrench (QS022-TW) with the correct torque.

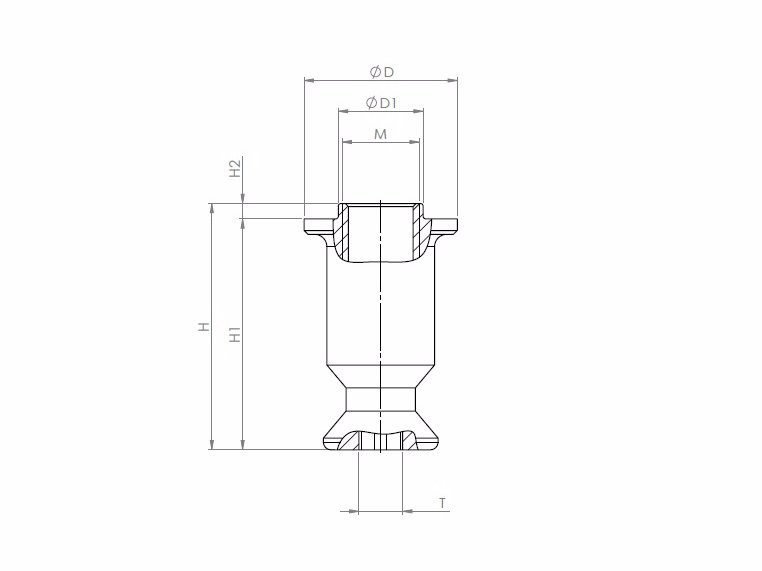

| Type no. | Order no. | øD | øD1 | M | H | H1 | H2 | T | Function | Torque [Nm] | Weight [g] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QS022-IF-M3 | 0008.0243 | 9,95 | 3,5 | M3 | 16 | 15 | 1 | T20 | Floating | 1 | 3,5 | CAD |
| QS022-IF-M4 | 0008.0244 | 9,95 | 4,5 | M4 | 16 | 15 | 1 | T20 | Floating | 2,2 | 3,5 | CAD |
| QS022-IF-M5 | 0008.0245 | 9,95 | 5,5 | M5 | 16 | 15 | 1 | T20 | Floating | 5 | 3 | CAD |
| QS022-IF-M6 | 0008.0246 | 9,95 | 6,5 | M6 | 16 | 15 | 1 | T20 | Floating | 5 | 3 | CAD |
